Re-Pairing the Collaborate RF Remote to the USB Dongle

Re-Pairing the Collaborate RF Remote to the USB Dongle

Pairing the Remote Control with a USB dongle receiver

1.       Start with batteries installed in the remote control and the USB dongle not plugged in the codec.
2.      Simultaneously press the OK and Back buttons on the remote control and hold for 3 seconds. The red led in the power button will start blinking.

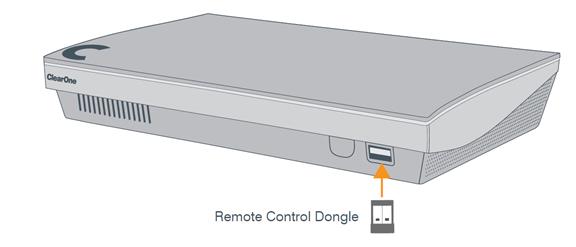

3.       Plug the USB dongle receiver to the codec front USB port.  The red led will stop blinking



Now the USB dongle receiver is paired with the remote control.



(Only one remote control can be paired with a single USB dongle receiver.)







Please Note, only one USB dongle can be connected during the pairing procedure
